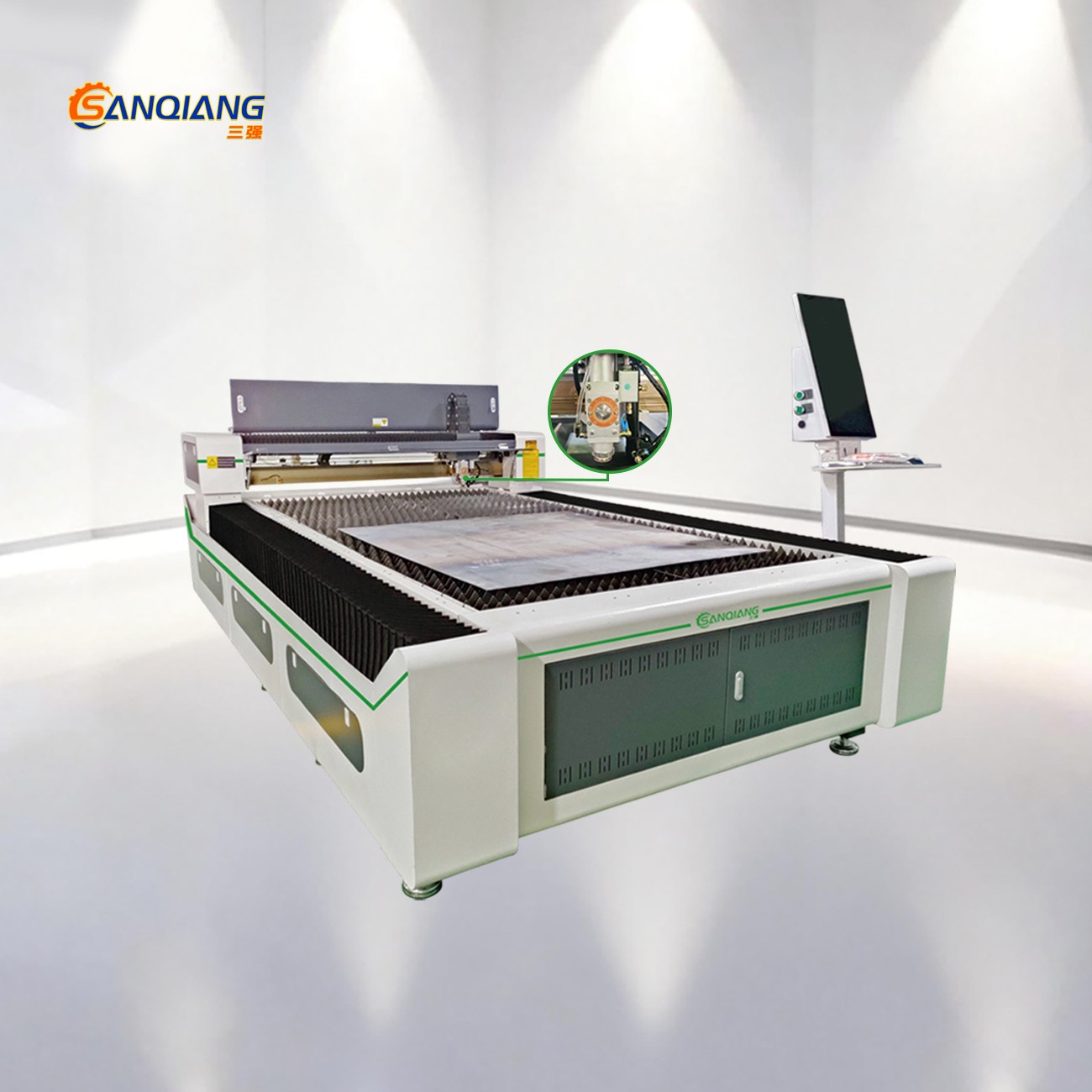

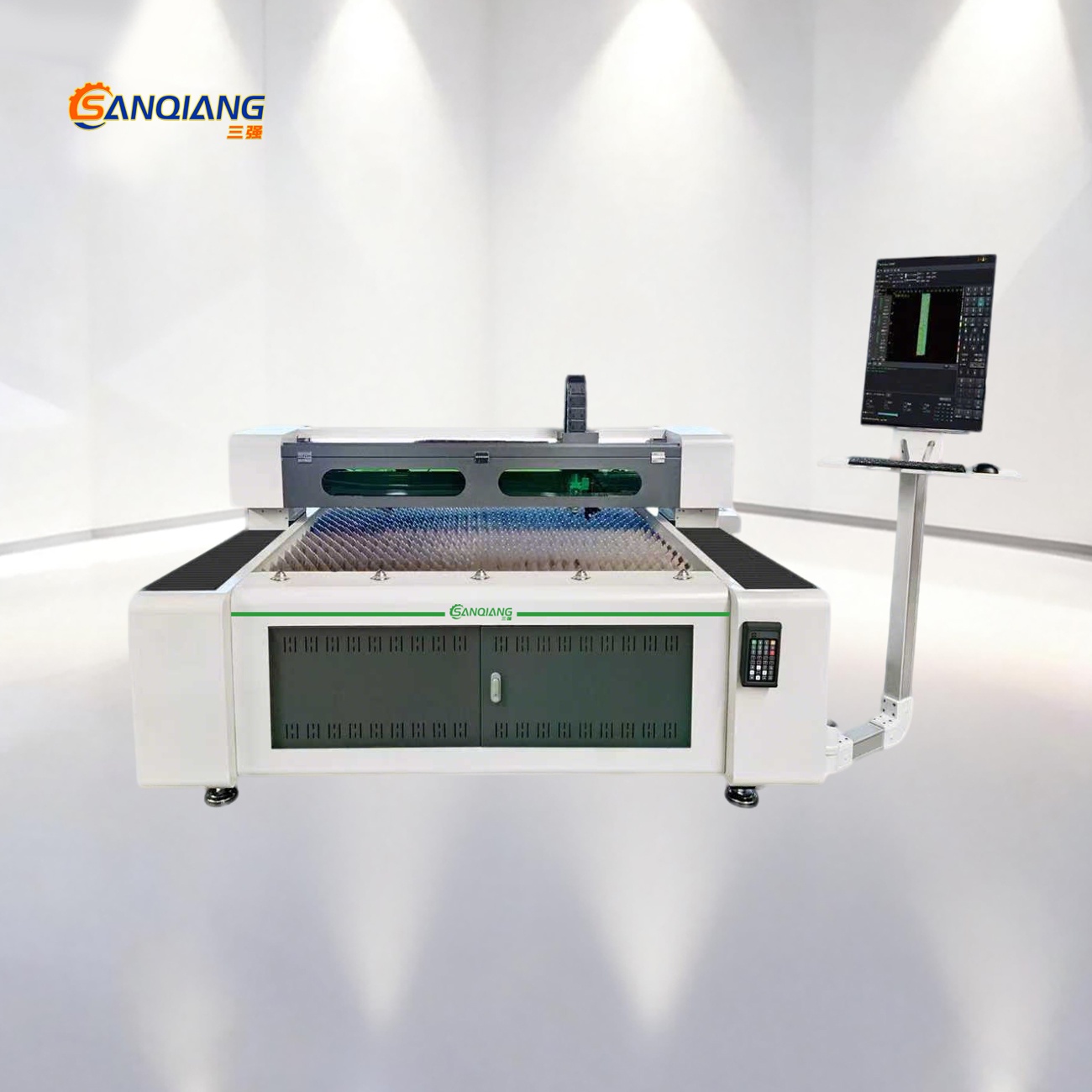

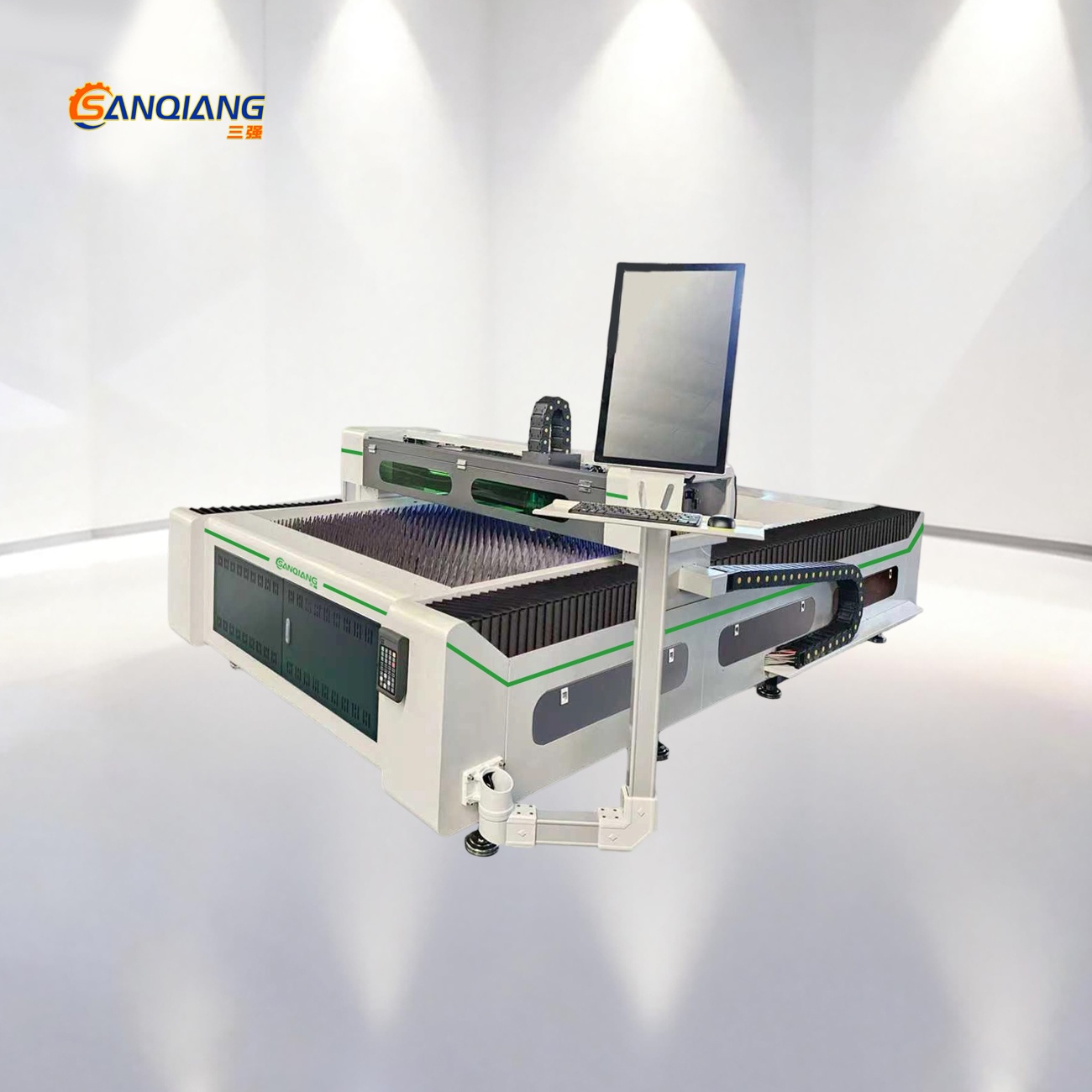

SQ-1325D

SQ-1325D

Dual-beam design with Fiber Laser + CO₂ Laser, cutting both metal and non-metal materials in one machine.
Professional dual-beam control system for one-click switching, simple and user-friendly.
Full pure servo drive, high precision and fast speed.
Imported high-precision YYC rack gear, ensuring high accuracy and stable transmission.
WhatsApp: +86 13153108238
E-mail: sales@sanqiangcnc.com
Get a Quote

Product Details

Main Features

1.Dual-beam design with Fiber Laser + CO₂ Laser, cutting both metal and non-metal materials in one machine.

2.Professional dual-beam control system for one-click switching, simple and user-friendly.

3.Full pure servo drive, high precision and fast speed.

4.Imported high-precision YYC rack gear, ensuring high accuracy and stable transmission.

Applicable Materials

Metal material、Advertising industry、Wooden products、Various leathers、Hardware、Mechanical equipment

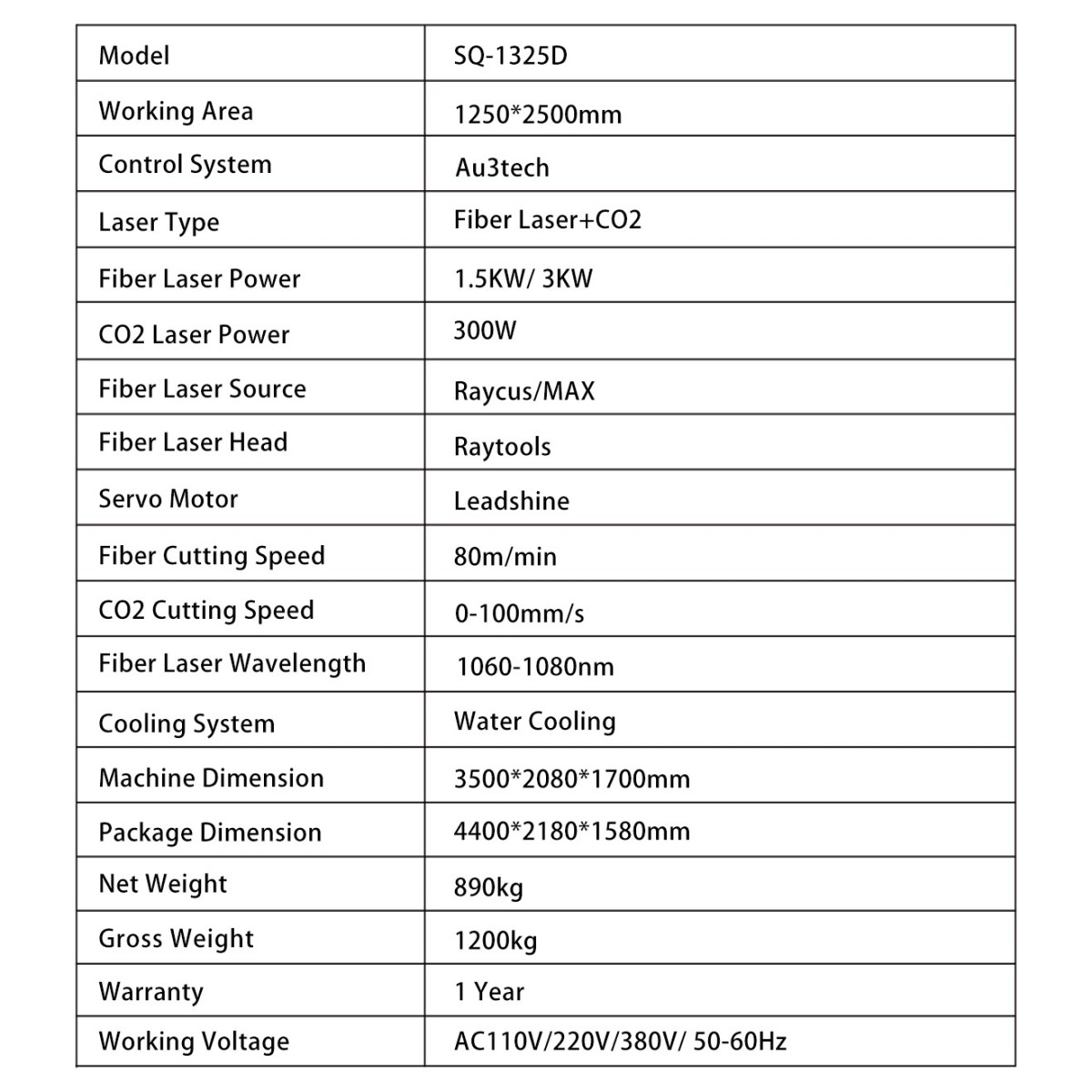

Parameters

 Model SQ-1325D(New)
 Working Area (mm) 1300*2500
 Control System Au3tech/Cypcut
 Laser Type Fiber Laser+CO2
 Fiber Laser Power1500W/3000W
 CO2 Laser Power150W/300W
 Fiber Laser Source Raycus/MAX/JPG
 Fiber Laser Head Raytools/Empower/WSX
 Servo Motor Leadshine/lnovance
 Fiber Cutting Speed 80m/min
 C02 Cutting Speed 0-100mm/s
 Fiber Laser Wavelength 1060-1080nm
 Cooling System Water Cooling
 Machine Dimension 3500*2080*1700mm
 Package Dimension 4400*2180*1580mm
 Net Weight 890kg
 Gross Weight 1200kg
 Warranty 1 Year
 Working Voltage AC110V/220V/380V/50-60Hz
